PART I: ANATOMY AND PHYSIOLOGY



by Dr. A. A. BIPAR, D.D.S., M.S.



Temporomandibular Joint (TMJ) dysfunction is a widely publicized medical condition. Public as well as health practitioners are overwhelmed by countless articles in both professional and media publications which discuss this abnormality and various treatment options.

Indeed, TMJ dysfunction is a very frequent abnormality and more than 20% of the American population exhibit different degrees of TMJ symptoms (Morgan, 1996) and this condition appears to be more common in women than men.

However, the clinical reality is less grim than it may appear at first look. For many patients the diagnosis of TMJ dysfunction does not automatically mean invasive therapy indeed sometimes treatment isn’t needed at all. Additionally TMJ dysfunction is a very frequently misdiagnosed and consequently mistreated condition.

Ironically enough, the subject of TMJ dysfunction and treatment is one of the most examined and still controversial subjects in dentistry. I may quote Dr. Greene (1980) who examined the evolution of TMJ dysfunction concept in modern dentistry and concluded that: “Rarely in the history of dentistry have so many labored for so long, only to end with such extreme disagreement”. This article will give our readers comprehensive outlines of TMJ dysfunction and discuss treatment options the patients have. In the first part I will review the anatomy and physiology of TMJ.

TEMPOROMANDIBULAR JOINT

The TMJ is a hard working joint. The average person opens and closes the jaw about 2000 times per day. The TMJ is formed by the mandible or lower jaw and temporal bone (see Fig. 1). The TMJ is a very unique joint because it contains an articular disk (see Fig.2) placed between the mandible and temporal bone which form the TMJ. This fibrocartilaginous disk greatly reduces friction between both articular surfaces and protects the hard working joint from wear and tear. Despite their differences we can observe a parallel between the anatomical arrangement of TMJ and knee joint where meniscus serve the same purpose of extra cushion and protection of the articular surfaces.

Another equally important function of the articular disk is its role in the greater flexibility of the TMJ which allows a significant range of motion. The articular disk is attached to the mandibular condyle of the mandible and follows the movements of the lower jaw during chewing or talking. Thus freedom of movement of mandible without any obstruction is a most important factor in the normal function of TMJ.

Another important concept which needs to be considered during the evaluation and treatment is a bite. The upper jaw forms the facial skeleton and it is a fixed anatomical structure, while the lower jaws has great mobility. Thus the bite is the arrangement of the lower and upper teeth against each other and it reflects the position of the lower jaw in regard to the upper jaw. The bite is unique for each person and may slightly change with age. A healthy functioning bite is one in which the person is totally unaware of the bite.

During chewing we are able to slightly change the bite by adjusting the lower jaw according to the amount and structure of the food. These changes are possible because of the great flexibility of the TMJ and complex anatomical arrangement of the masticatory muscles and their precise biomechanical interactions.

The posterior teeth as a group support the normal bite. This is why the excessive clasp of the posterior teeth or so-called posterior bite increases the pressure inside of TMJ especially on the articular disk and triggers the spasm in the masticatory muscles. The excessive wear, hypermobility or absence of posterior teeth are equally important factors which contribute to extraoral symptoms including the TMJ dysfunction (Oral et al., 2009). Fig. 1 illustrates general view of TMJ.

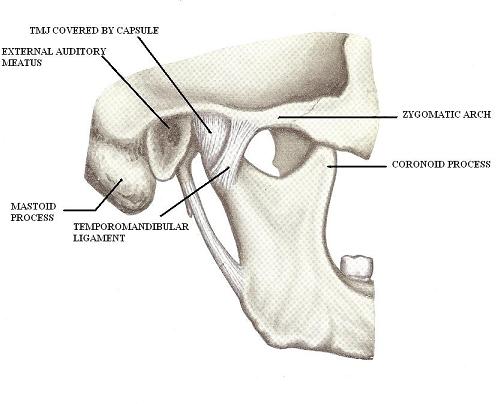

Fig.1. General view of TMJ

Fig. 1. General view of TMJ

Fig. 2 presents the anatomical orienteers in the area of TMJ

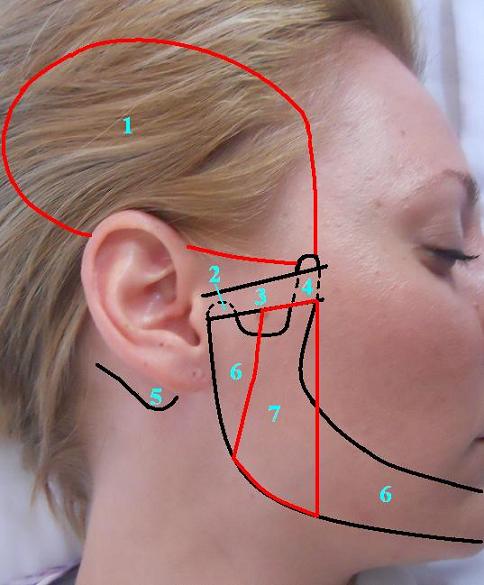

Fig.2. Anatomical orienteers in the area of TMJ

Fig. 2. Anatomical orienteers in the area of TMJ



1 – temporalis muscle
2 – condyloid process of TMJ (under zygomatic arch)
3 – zygomatic arch
4 – coronoid process
5 – mastoid process
6 – mandible
7 – masseter muscle

Fig. 3 presents the inner structure of TMJ

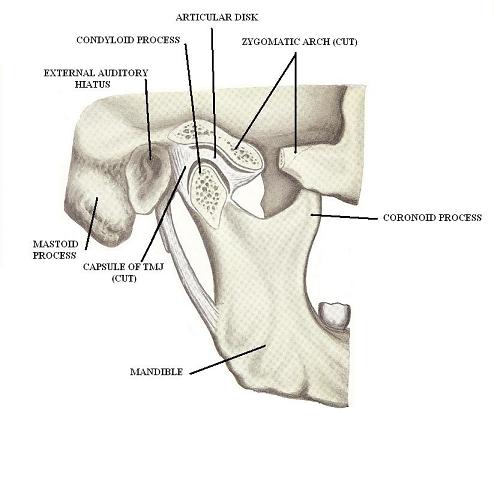

Fig. 3. Inner structure of TMJ

Fig. 3. Inner structure of TMJ

MASTICATORY MUSCLES

The anatomical arrangement and function of masticatory muscles is a very important subject for the practitioner. The spasm in the masticatory muscles is a direct cause of pressure on the articular disk inside TMJ (Inoue et al. 2010). The evaluation of the lower jaw position and individual assessment of each masticatory muscle during the patient’s examination allows the practitioner to develop a quick and efficient treatment protocol. Thus the information presented below has important practical value and it is vital for understanding and implementing the second and third parts of this article.

All masticatory muscles are innervated by the motor part of the mandibular division of the trigeminal nerve except posterior part of the digastric muscle which is innervated by the facial nerve. There are five masticatory muscles (see Fig. 4-7):

Masseter Muscle

ORIGIN INSERTION ACTION
zygomatic arch mandibular angle close mouth by lifting lower jaw and assists in pulling it backward

The masseter muscle is arranged in two layers: superficial and deep. They both start from the zygomatic arch but insert into the mandible into slightly different areas: the superficial layer attaches into the inferior part of the mandibular ramus while the deep layer inserts into its superior part. Fig. 4 illustrates the anatomical location of the masseter muscle. See also Fig.2.

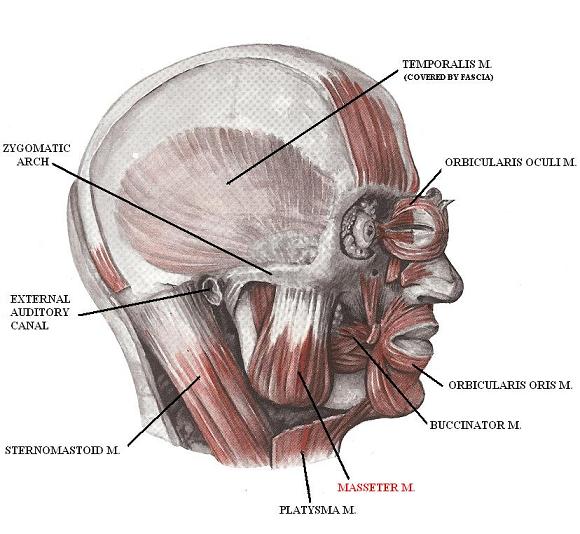

Fig. 4. Anatomy of masseter muscle

Fig. 4. Anatomy of masseter muscle

Temporalis Muscle

ORIGIN INSERTION ACTION
temporal and parietal bones coronoid process of mandible close mouth by lifting lower jaw, assists in pulling lower jaw backward and to the same side (lateral movement)

The fibers of the temporalis muscle are arranged in three directions: the fibers of the anterior part of the temporalis muscle have almost vertical direction, the fibers of the middle part of the temporalis muscle have an oblique direction while the fibers of the posterior part are almost horizontally oriented. Fig. 3 and 4 illustrate the anatomical location of the temporalis muscle. See also Fig.2.

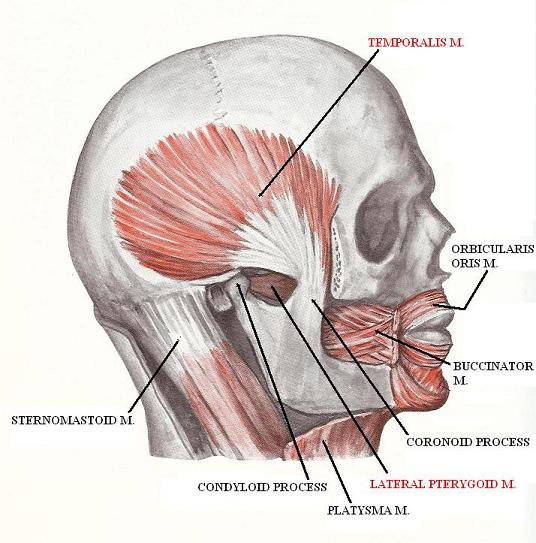

Fig. 5. Anatomy of temporalis muscle

Fig. 5. Anatomy of temporalis muscle

Lateral Pterygoid Muscle (LPM)

ORIGIN INSERTION ACTION
Superior head – sphenoid bone
Inferior head – lateral pterygoid plate
articular disk mandible opens mouth, pulls lower jaw forward, makes grinding movements (lateral movement of the lower jaw to the opposite side with unilateral contraction), pulls articular disk forward

The ability of the LPM to pull the articular disk forward when the mouth is closed is very important for the normal function of TMJ. By pulling the disk forward the LPM keeps it from smashing between both articular surfaces of the TMJ. Failure of the LPM to do it quickly during the sudden lift of the lower jaw may entrap the articular disk and smash or even fracture it. Fig. 6 illustrates the anatomical location of lateral pterygoid muscle. See also Fig. 5.

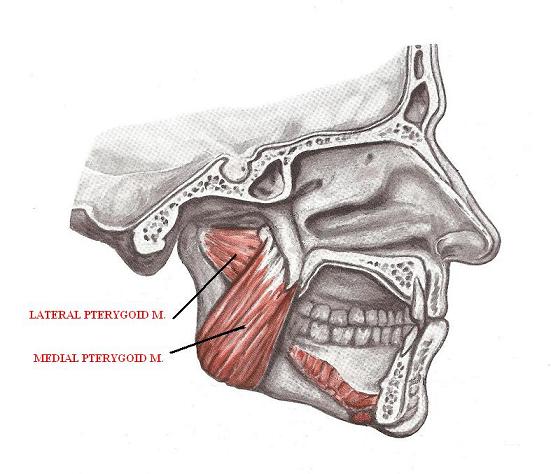

Fig. 6. Anatomy of lateral and medial pterygoid muscles

Fig. 6. Anatomy of lateral and medial pterygoid muscles

Medial Pterygoid Muscle (MPM)

ORIGIN INSERTION ACTION
medial and lateral pterygoid plates mandibular angle close mouth by lifting lower jaw, grinding movements (lateral movements of the lower jaw to the opposite side with unilateral contraction)

Masseter and MPM form a hammock which supports the lower jaw: the masseter muscle is on the outside while MPM is on the inside of the lower jaw. Fig. 5 illustrates the anatomical location of the medial pterygoid muscle.

Digastric Muscle

ORIGIN INSERTION ACTION
hyoid bone anterior portion – inferior edge of mandible
posterior portion – mastoid process
pulls lower jaw backward, forced opening of the mouth

The digastric muscle participates only in the forced opening of the mouth when the lower jaw must be farther pulled down (e.g. during oral examination). Also this muscle is a very important participant in swallowing and coughing. Fig. 7 illustrates the anatomical location of the digastric muscle.

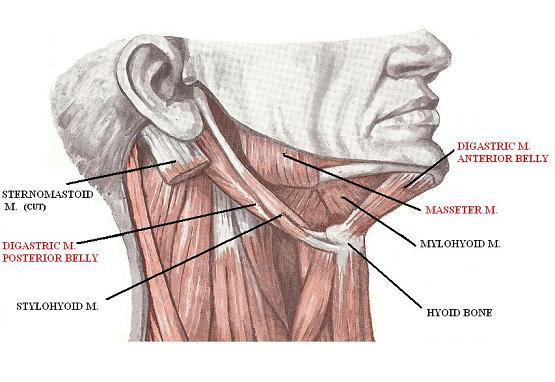

Fig. 7. Anatomy of digastric muscle

Fig. 7 Anatomy of digastric muscle

In Part II of this article, in the next issue of JMS, we will discuss the clinical symptoms and the evaluation of a patient with TMJ dysfunction.

REFERENCES

Greene CS. Myofascial Pain-Dysfunction Syndrome: The Evolution of Concept. In The Temporomandibular Joint. Edited by B.G. Sarnat, D.M. Laskin. ‘Charles C. Thomas’, 1980.
Inoue E, Maekawa K, Minakuchi H, Nagamatsu-Sakaguchi C, Ono T, Matsuka Y, Clark GT, Kuboki T. The Relationship Between Temporomandibular Joint Pathosis and Muscle Tenderness in the Orofacial and Neck/Shoulder Region.Oral Surg Oral Med Oral Pathol Oral Radiol Endod., Jan;109(1):86-90, 2010.
Morgan D.H. The Great Imposter Disease of the Mandibular Joint. JAMA, 235, 2395, 1976.
Oral K, Bal Kucuk B, Ebeoglu B, Dincer S. Etiology of Temporomandibular Disorder Pain. Agri, Jul;21(3):89-94, 2009.
